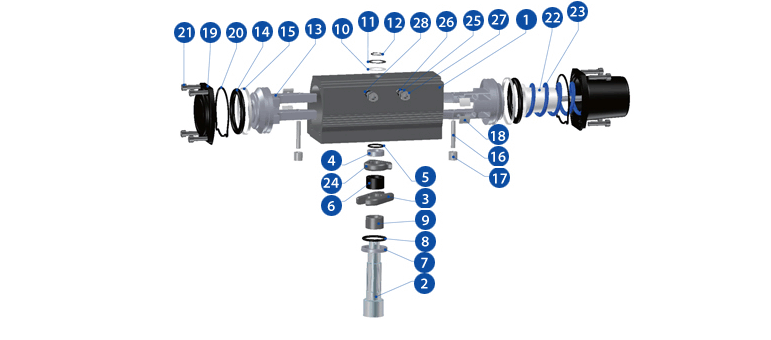

零部件
序号 | 部件名称 | 部件材质 |
---|---|---|
1 | Body | Aluminum Alloy |
2 | Shaft | Steel Alloy (Nickel Plated) |
3 | Crank | Steel Alloy |
4 | Bushing (Top) | Engineering Plastic |
5 | Body O-ring (Top) | NBR |
6 | Shaft Roller (Top) | Engineering Plastic |
7 | Bushing (Bottom) | Engineering Plastic |
8 | Body O-ring (Bottom) | NBR |
9 | Shaft Roller (Bottom) | Engineering Plastic |
10 | Body Washer (Bottom) | Engineering Plastic |
11 | Body Washer (Top) | Stainless Steel |
12 | Body Snap-ring | Stainless Steel |
13 | Piston | Aluminum Alloy |
14 | Piston O-ring | NBR |
序号 | 部件名称 | 部件材质 |
---|---|---|
15 | Piston Guide-ring | Engineering Plastic |
16 | Piston Pin | Steel Alloy |
17 | Piston Roller | Steel Alloy |
18 | Piston Pad | Engineering Plastic |
19 | Cover | Aluminum Alloy |
20 | Cover O-ring | NBR |
21 | Cover Bolt | Steel Alloy |
22 | Spring Cap | Engineering Plastic |
23 | Spring | Spring |
24 | Stopper | Steel Alloy |
25 | Adjust Washer | Stainless Steel |
26 | Adjust Nut | Stainless Steel |
27 | Adjust O-ring | NBR |
28 | Adjust Bolt | Steel Alloy |
